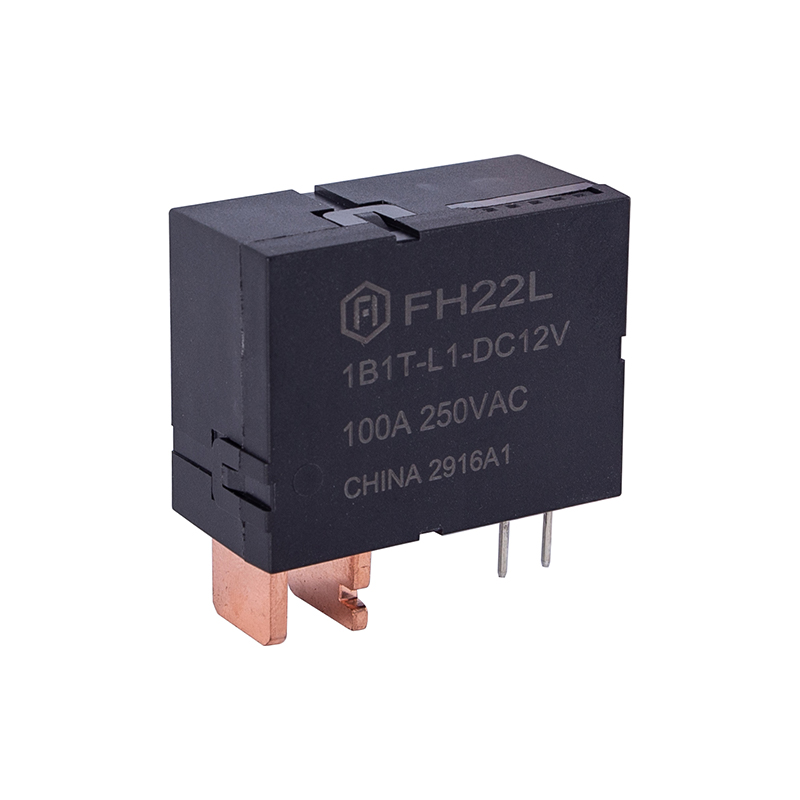

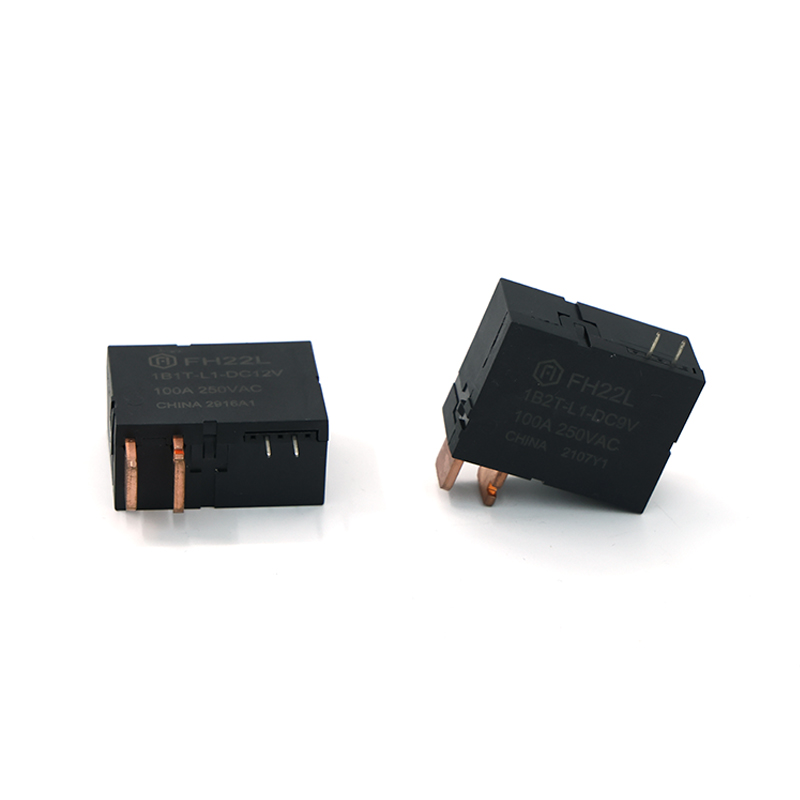

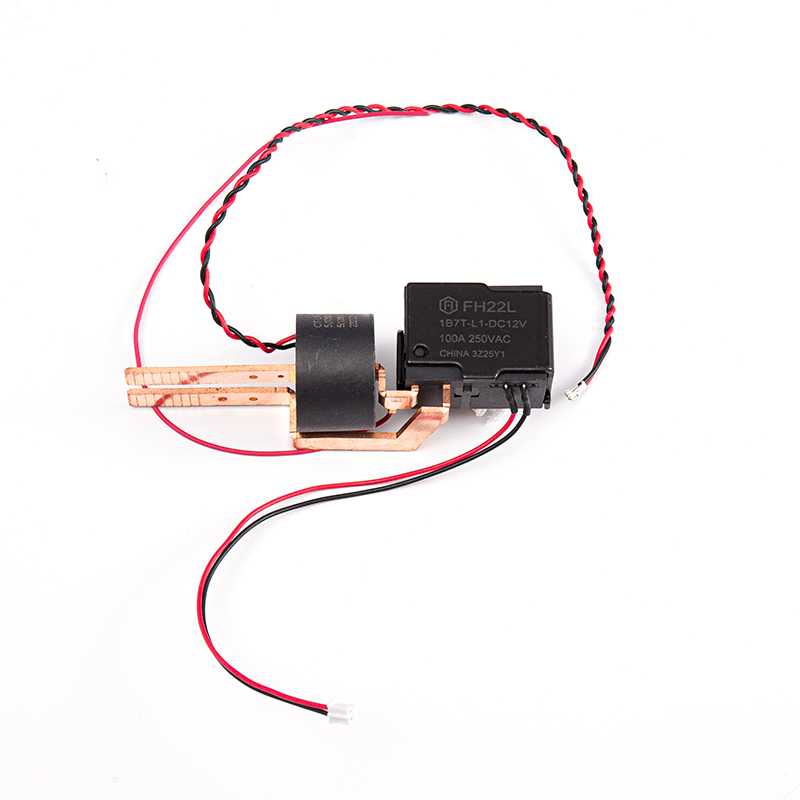

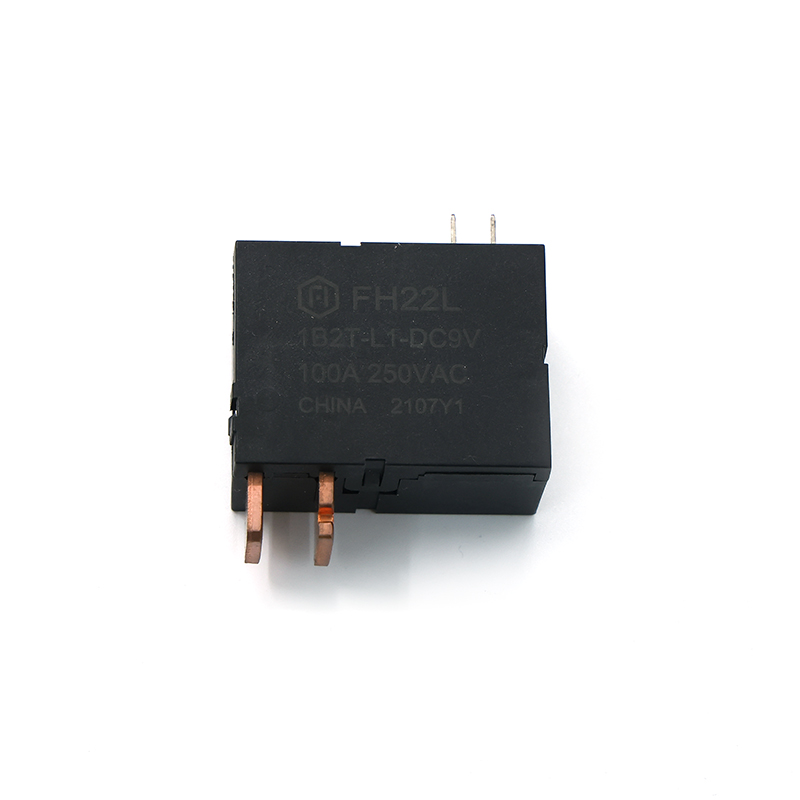

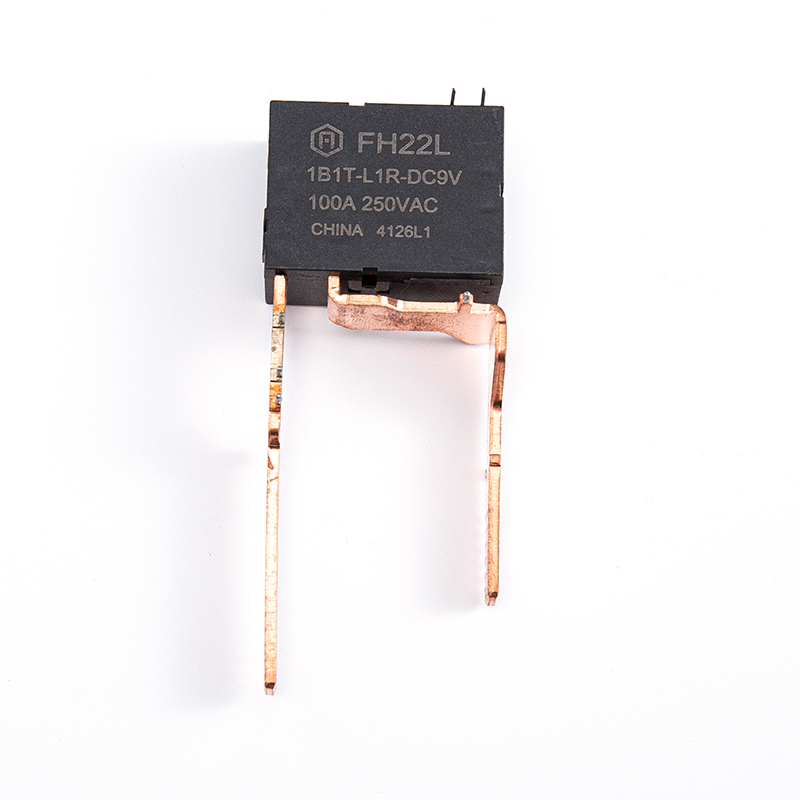

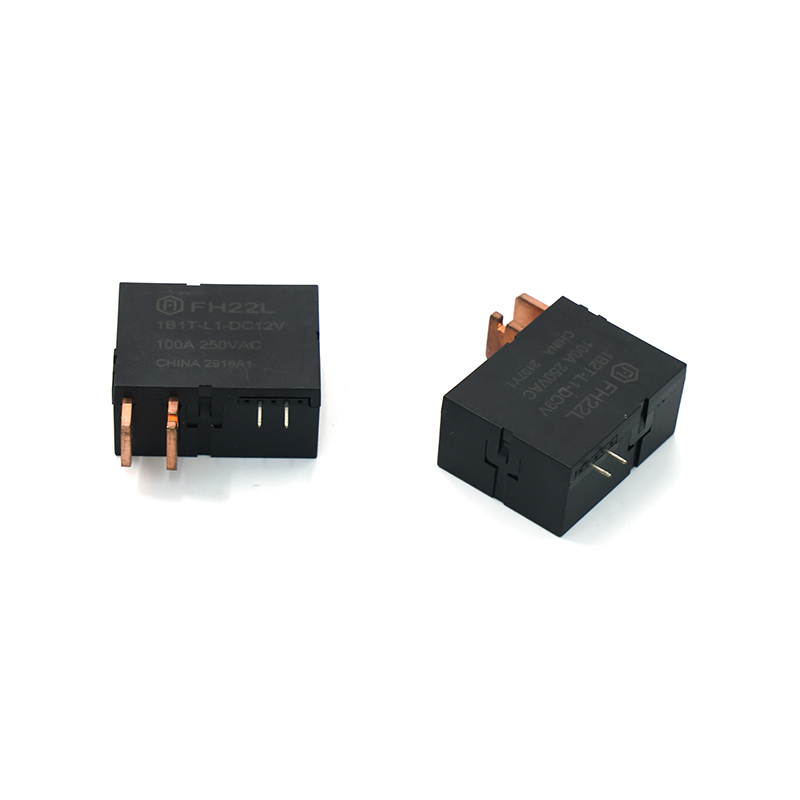

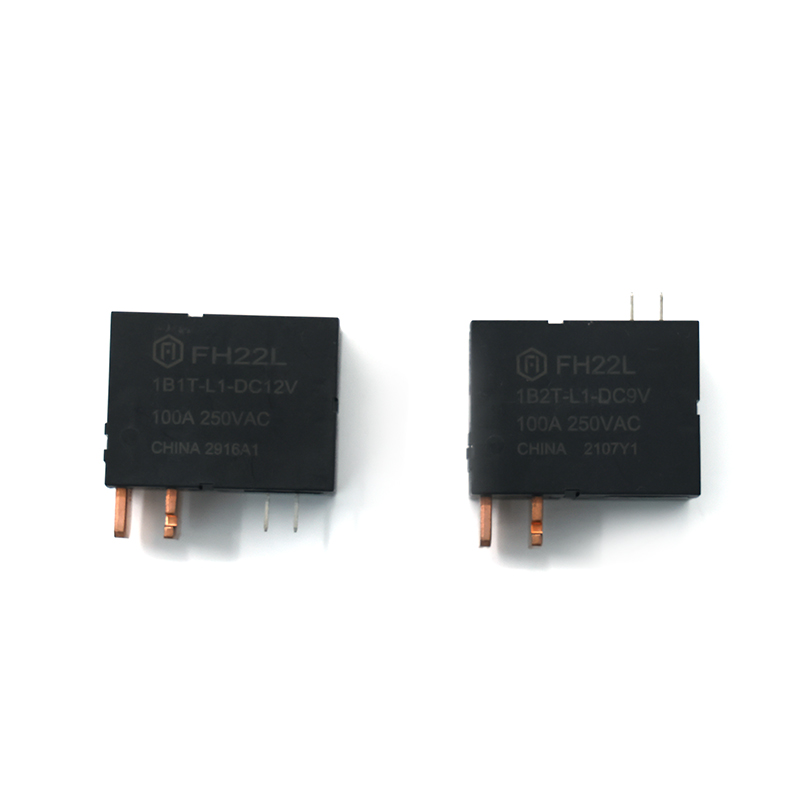

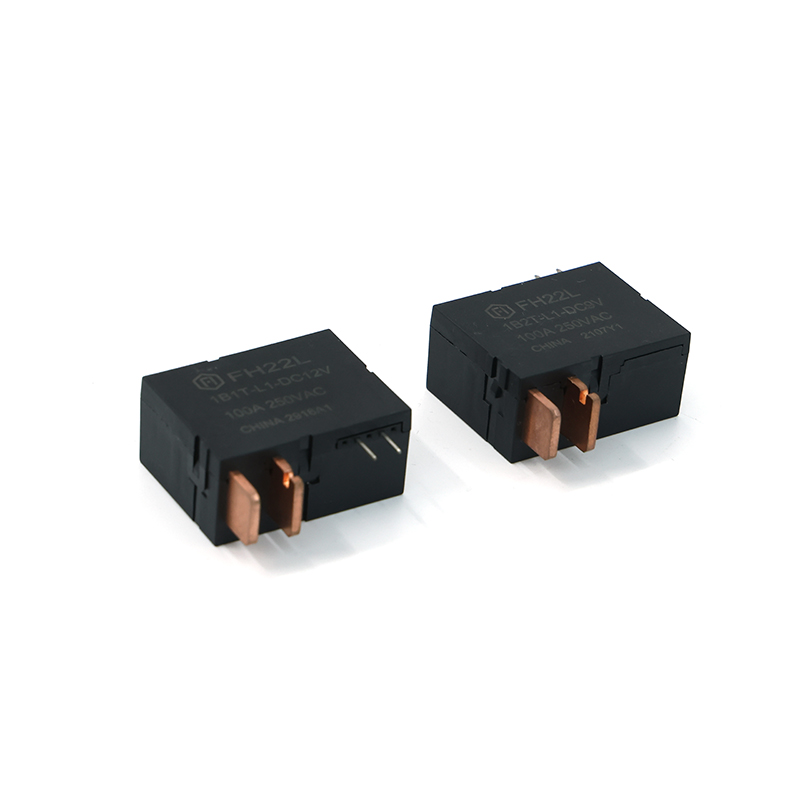

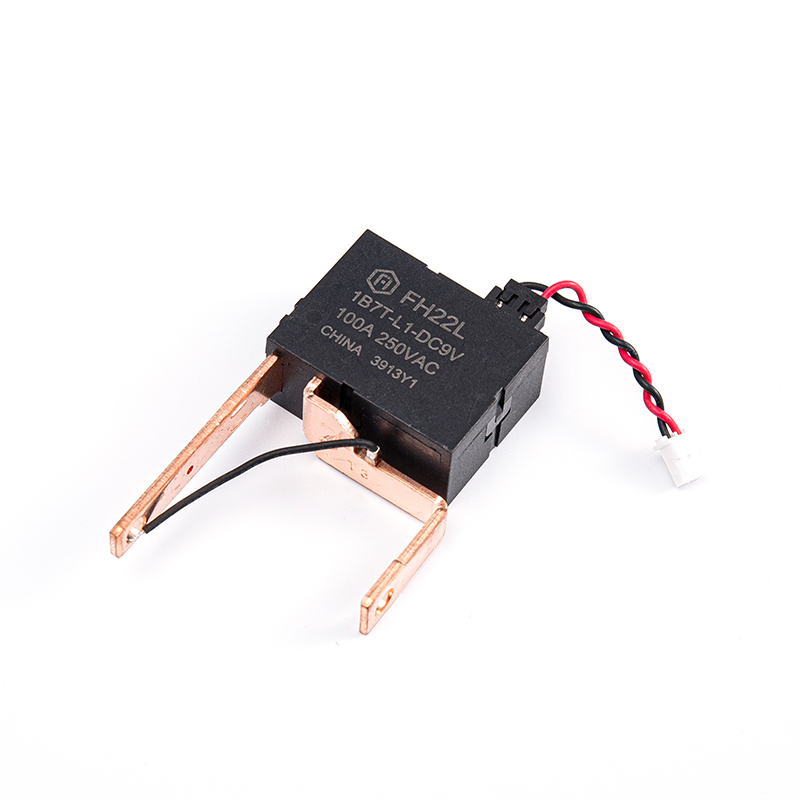

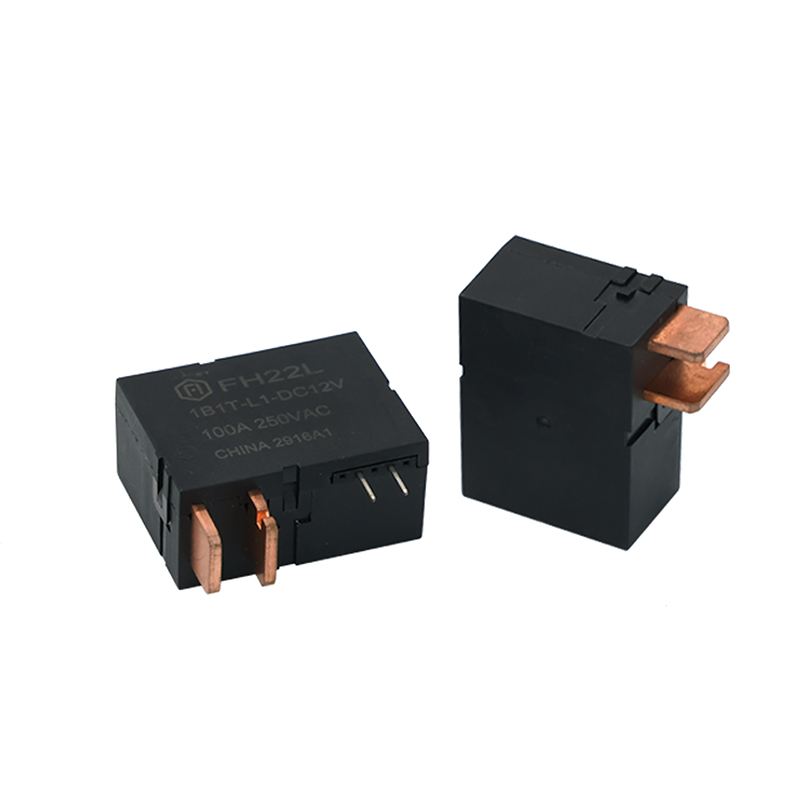

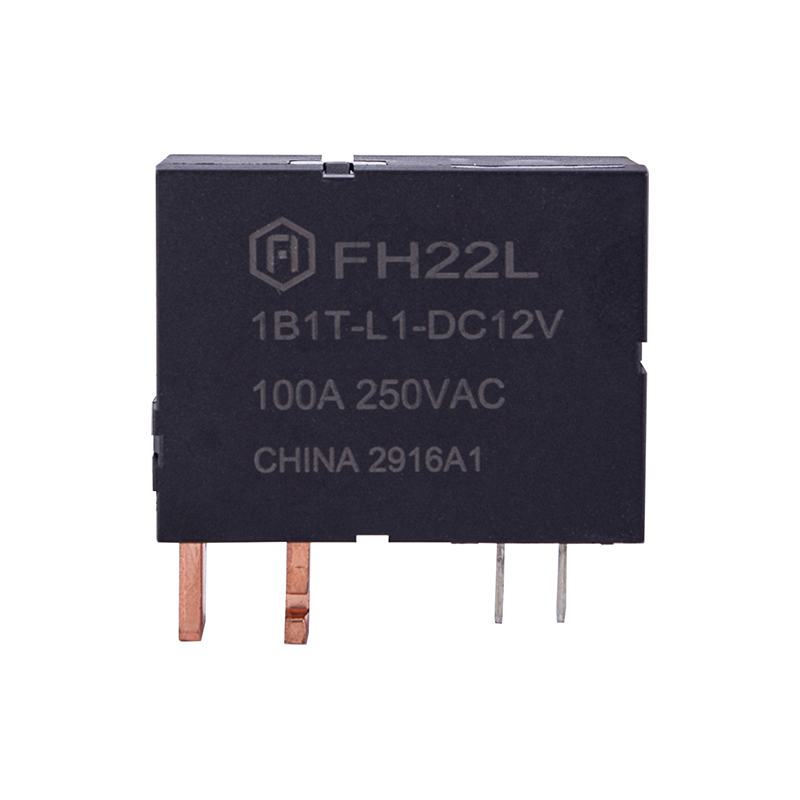

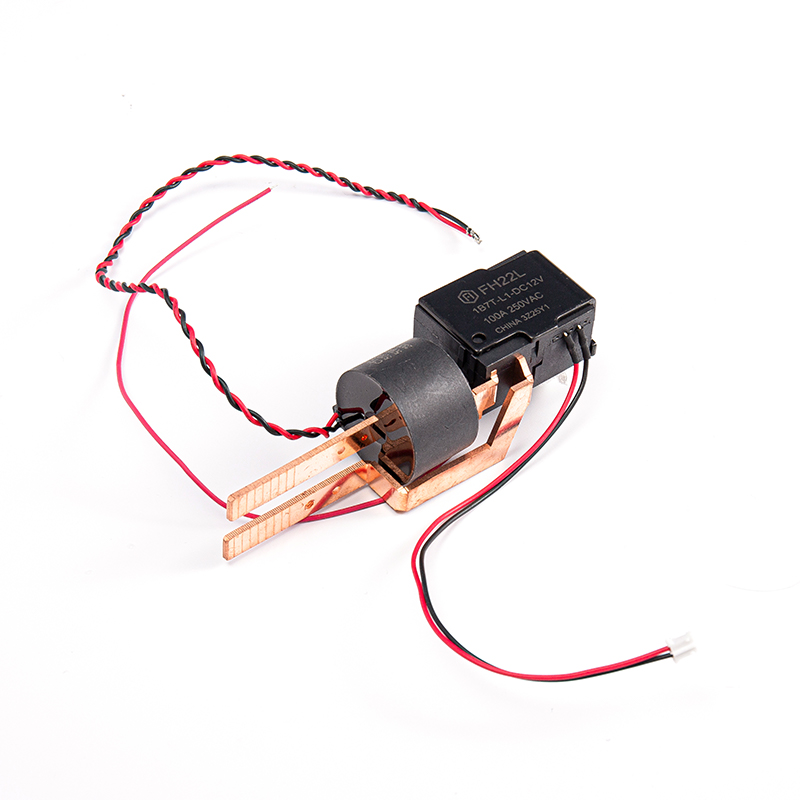

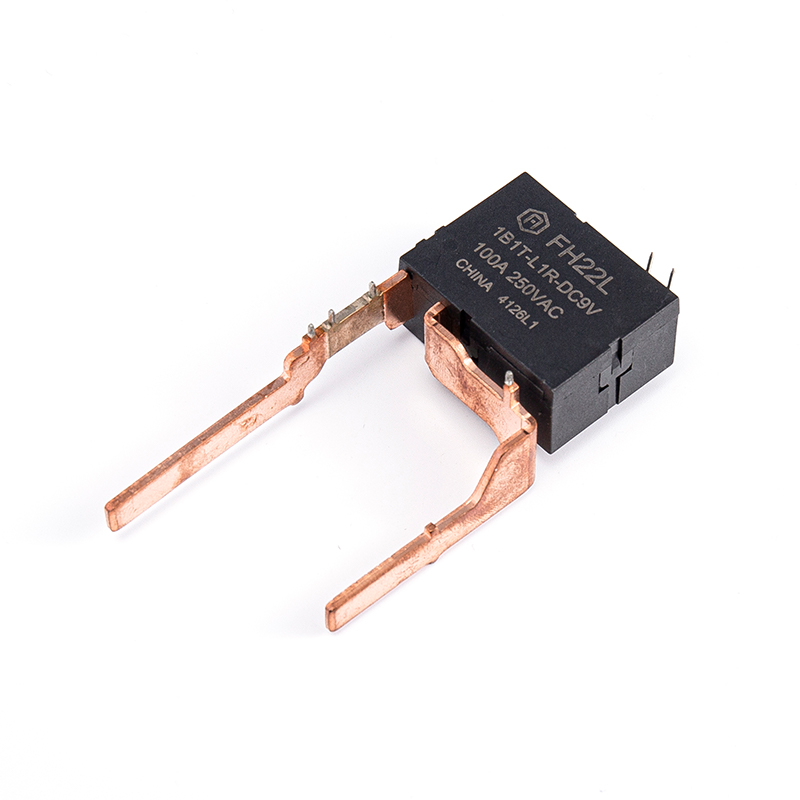

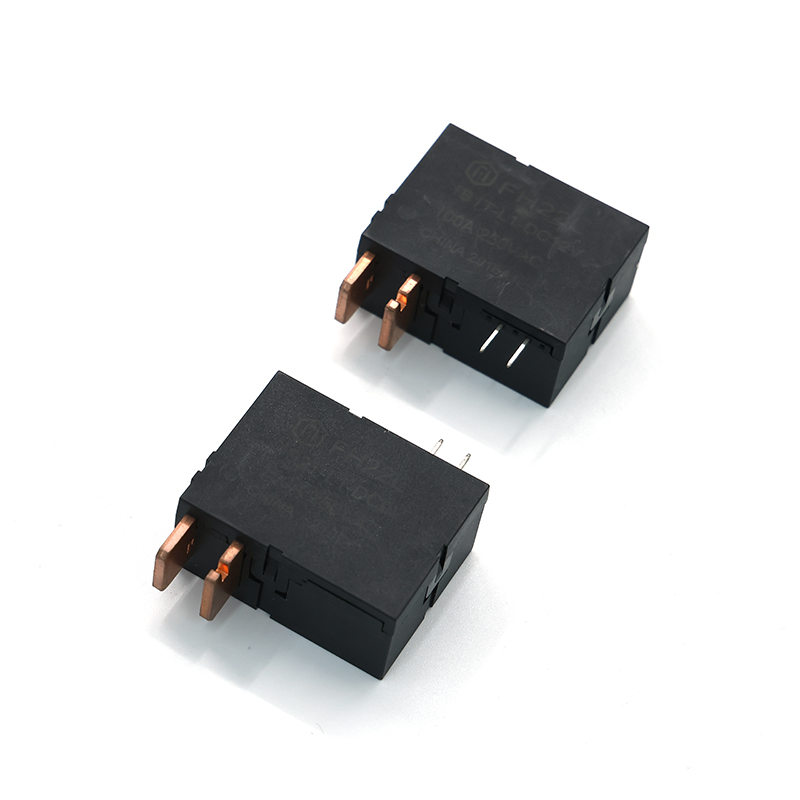

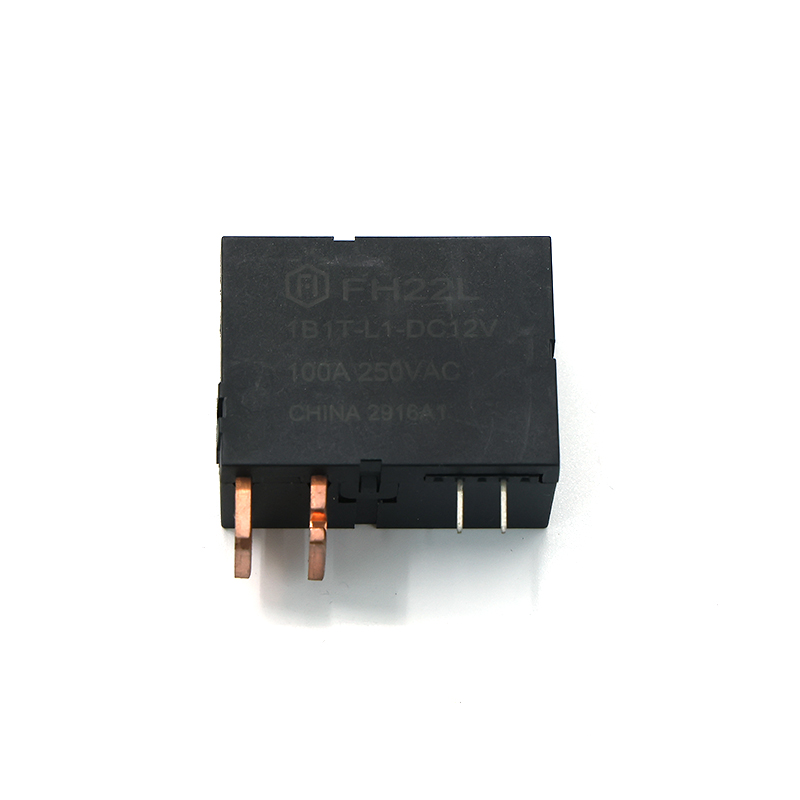

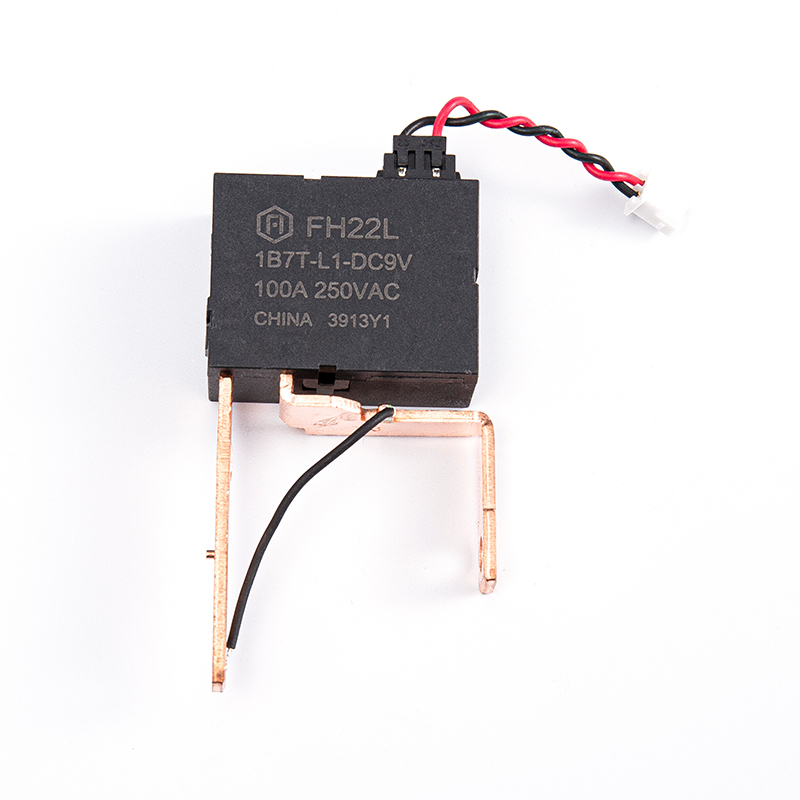

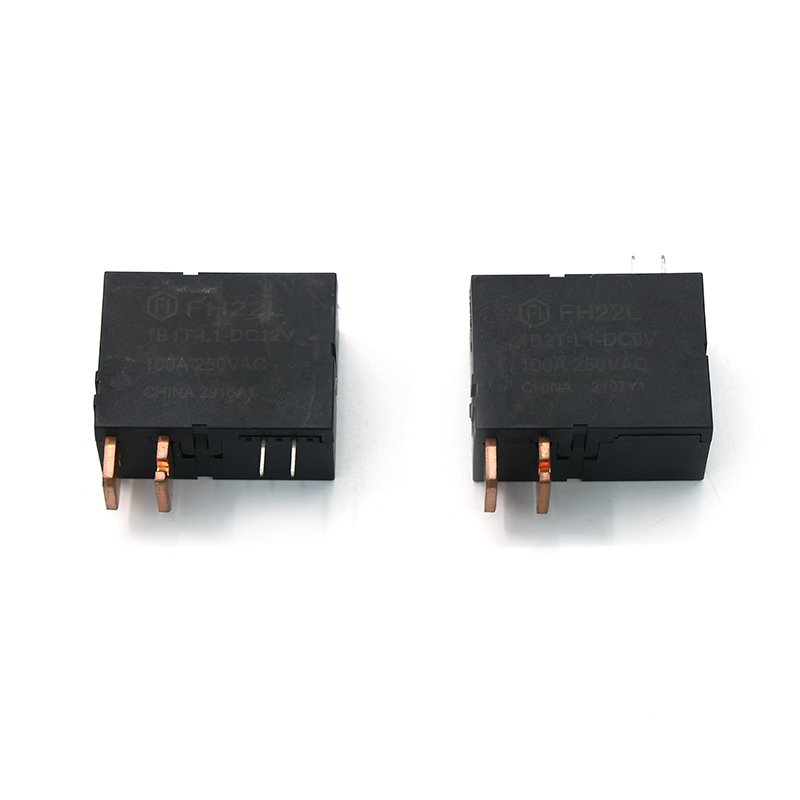

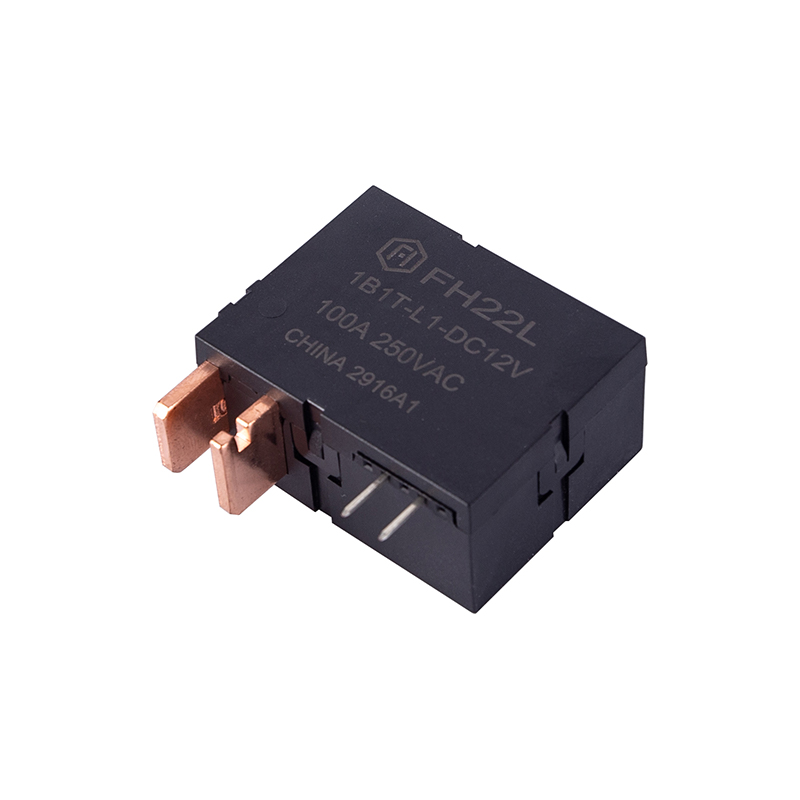

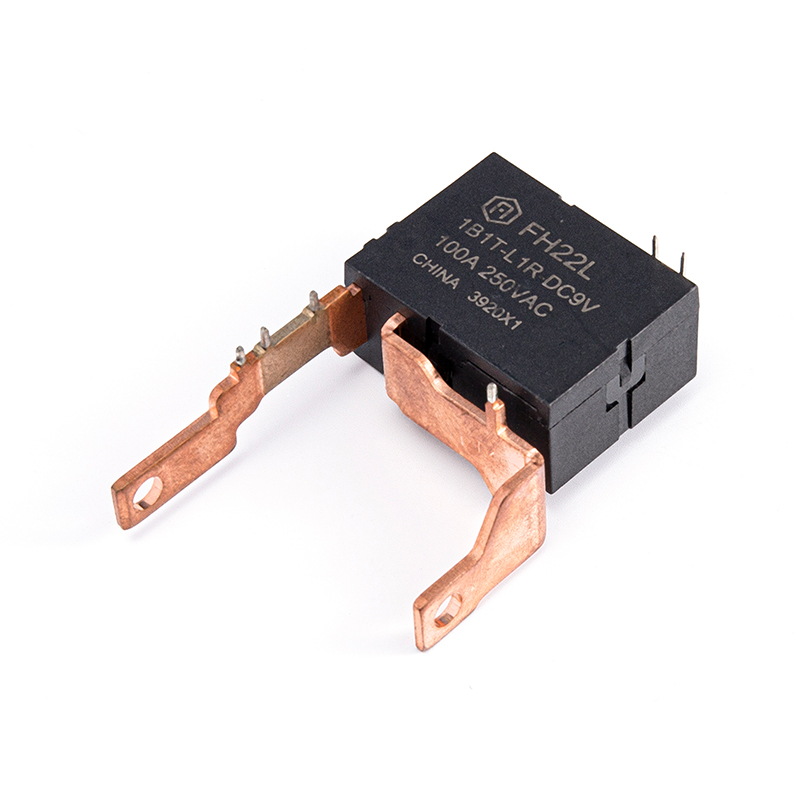

FH22L 100A Latching Relay IEC62052-31 UC2 Compliant

Specifications

Item

Contact Data

Contact arrangement

1A、1B

Contact resistance(initial)

≤1.0mΩ(6VDC 1A)

Contact material

AgSnO ₂

Rated value

Rated load(Resistance load)

100A   250VAC

Max.switching voltage

277VAC

Max.switching current

100A

Max.switching capacity

25000VA

Electrical performance

Insulation resistance(initial)

1000MΩ(500VDC)

Dielectric strength (Initial)

Between open contacts

2000VAC    1min

Between coil&contacts

4000VAC    1min

Closing time

≤20ms

Opening time

≤20ms

Mechanical performance

Shock resistance

Functional

98m/s ² (10g)

Destructive

980m/s ² (100g)

Vibration resistance

10Hz~55Hz 1.5mm DA

Endurance

Mechanical

1× 10 ⁵ ops

Electrical

ON/OFF= 1S/9S

100A   250VAC            1× 10 ⁴ ops(COSφ= 1)

Electrical UC2/3(1)

ON/OFF= 10S/20S

80A   240VAC

5000ops(COSφ= 1)

Total 10000ops

5000ops(COSφ=0.5)

Operate condition

Ambient temperature

-40℃~85℃

Humidity

5%~85%RH

Termination

Plug-in needle type Screw type(XB)

Unit weight

Approx.50g (Without attachment)

Construction

Flux proofed
